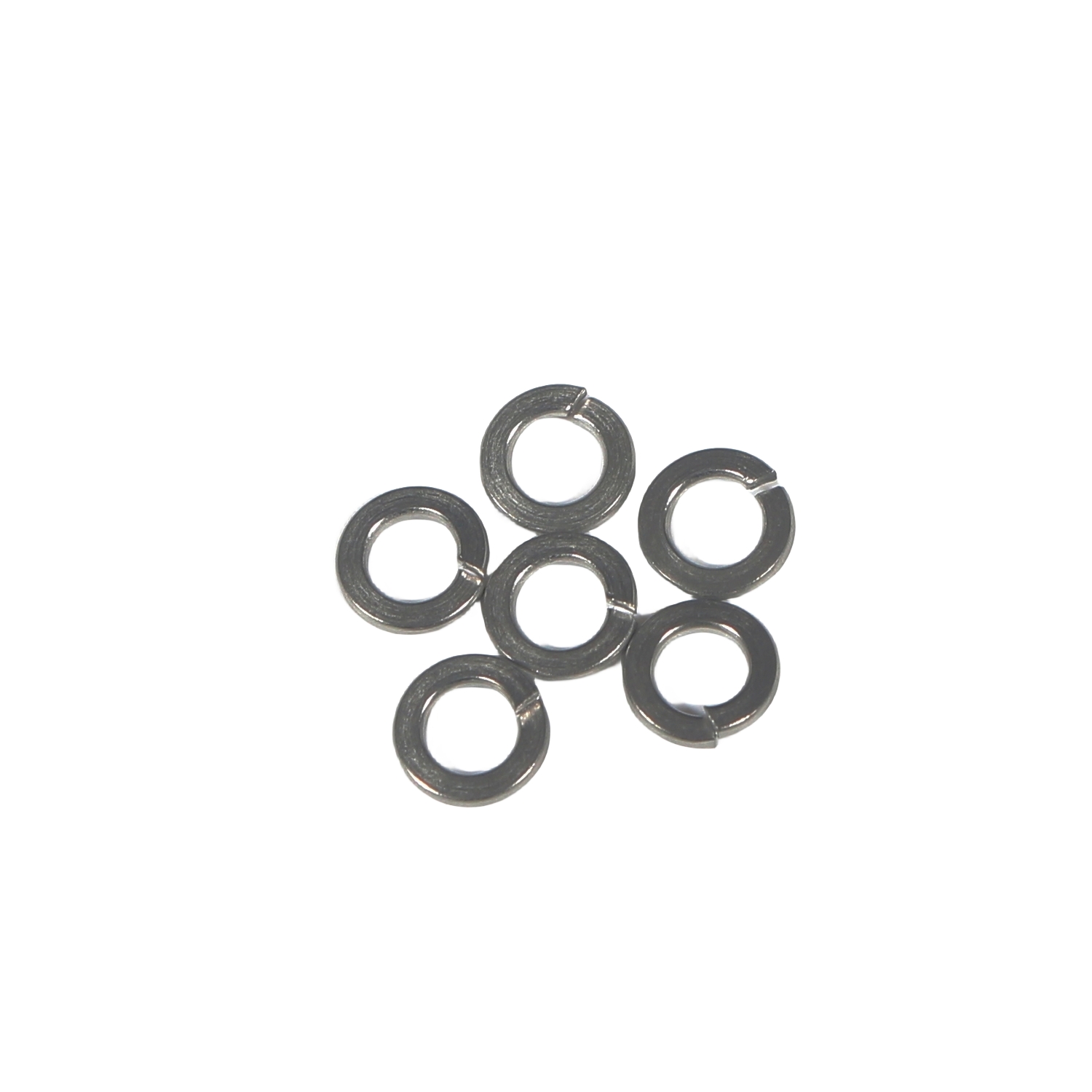

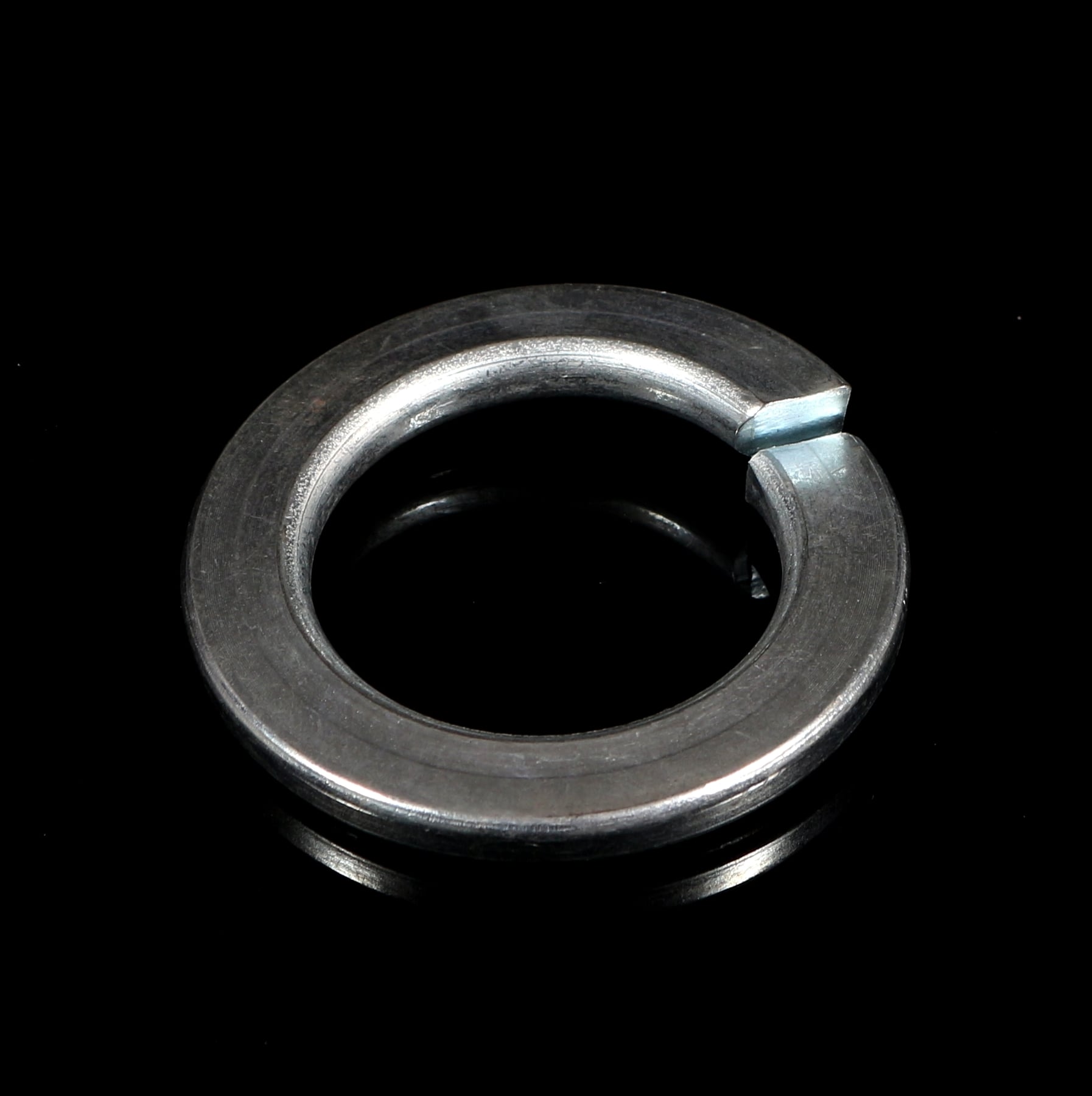

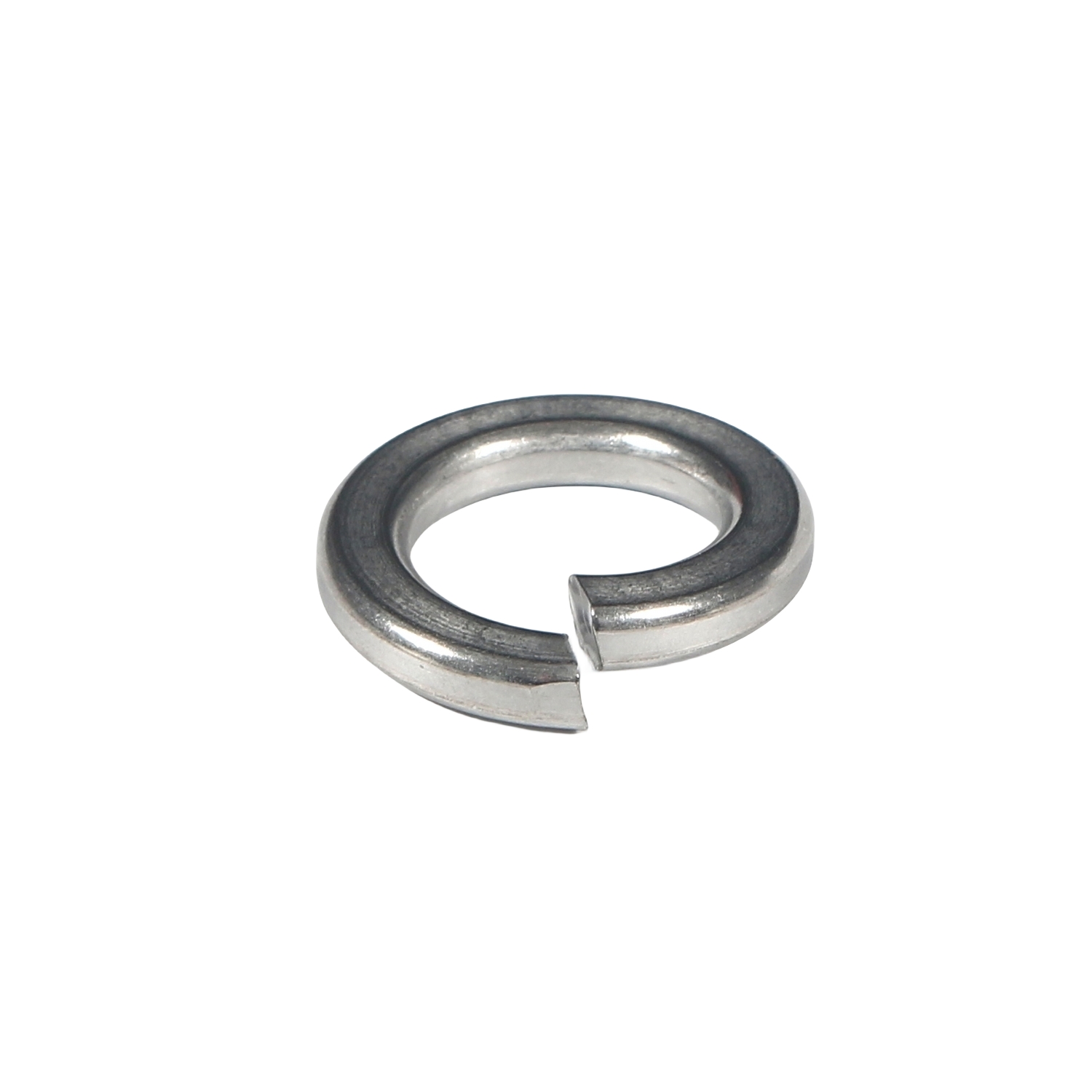

Product specifics:
BS 4464 Spring Lock Washers (Type A/B/D/BP) is widely used in mechanical railway industrial products, auto parts, power products, solar products, ships, building decoration engineering, bridges, furniture, home appliances, and other fields.

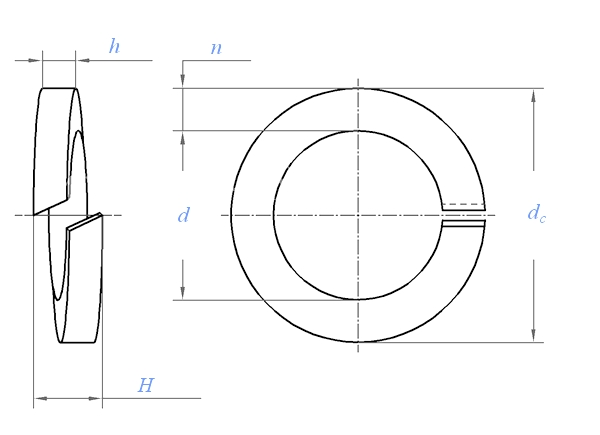

Product parameter table:
Metric spring lock washers - type A:
| Size | M3 | M3.5 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | |
| d | max | 3.3 | 3.8 | 4.35 | 5.35 | 6.4 | 8.55 | 10.6 | 12.6 | 14.7 | 16.9 | 19 |
| min | 3.1 | 3.6 | 4.1 | 5.1 | 6.1 | 8.2 | 10.2 | 12.2 | 14.2 | 16.3 | 18.3 | |
| h | Nominal Size | 1 | 1 | 1.2 | 1.5 | 1.5 | 2 | 2.5 | 2.5 | 3 | 3.5 | 3.5 |
| max | 1.1 | 1.1 | 1.3 | 1.6 | 1.6 | 2.1 | 2.65 | 2.65 | 3.2 | 3.7 | 3.7 | |
| min | 0.9 | 0.9 | 1.1 | 1.4 | 1.4 | 1.9 | 2.35 | 2.35 | 2.8 | 3.3 | 3.3 | |
| dc | max | 5.5 | 6 | 6.95 | 8.55 | 9.6 | 12.75 | 15.9 | 17.9 | 21.1 | 24.3 | 26.4 |
| Size | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | |
| d | max | 21.1 | 23.3 | 25.3 | 28.5 | 31.5 | 34.6 | 37.6 | 40.8 | 43.8 | 46.8 | 50 |
| min | 20.3 | 22.4 | 24.4 | 27.5 | 30.5 | 33.5 | 36.5 | 39.6 | 42.6 | 45.6 | 48.8 | |
| h | Nominal Size | 4.5 | 4.5 | 5 | 5 | 6 | 6 | 7 | 7 | 8 | 8 | 8 |
| max | 4.7 | 4.7 | 5.2 | 5.2 | 6.2 | 6.2 | 7.25 | 7.25 | 8.25 | 8.25 | 8.25 | |
| min | 4.3 | 4.3 | 4.8 | 4.8 | 5.8 | 5.8 | 6.75 | 6.75 | 7.75 | 7.75 | 7.75 | |
| dc | max | 30.5 | 32.7 | 35.7 | 38.9 | 43.9 | 47 | 52.1 | 55.3 | 60.3 | 63.3 | 66.5 |
Metric spring lock washers - type B:
| Size | M1.6 | M2 | M2.2 | M2.5 | M3 | M3.5 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | |
| d | max | 1.9 | 2.3 | 2.5 | 2.8 | 3.3 | 3.8 | 4.35 | 5.35 | 6.4 | 8.55 | 10.6 | 12.6 | 14.7 | 16.9 | 19 | 21.1 |
| min | 1.7 | 2.1 | 2.3 | 2.6 | 3.1 | 3.6 | 4.1 | 5.1 | 6.1 | 8.2 | 10.2 | 12.2 | 14.2 | 16.3 | 18.3 | 20.3 | |
| n | max | 0.8 | 1 | 1.1 | 1.1 | 1.4 | 1.4 | 1.6 | 1.9 | 2.65 | 3.15 | 3.7 | 4.2 | 4.7 | 5.2 | 5.2 | 6.2 |
| min | 0.6 | 0.8 | 0.9 | 0.9 | 1.2 | 1.2 | 1.4 | 1.7 | 2.35 | 2.85 | 3.3 | 3.8 | 4.3 | 4.8 | 4.8 | 5.8 | |
| h | Nominal Size | 0.4 | 0.5 | 0.6 | 0.6 | 0.8 | 0.8 | 0.9 | 1.2 | 1.6 | 2 | 2.2 | 2.5 | 3 | 3.5 | 3.5 | 4 |
| max | 0.5 | 0.6 | 0.7 | 0.7 | 0.9 | 0.9 | 1 | 1.3 | 1.7 | 2.1 | 2.35 | 2.65 | 3.15 | 3.7 | 3.7 | 4.2 | |
| min | 0.3 | 0.4 | 0.5 | 0.5 | 0.7 | 0.7 | 0.8 | 1.1 | 1.5 | 1.9 | 2.05 | 2.35 | 2.85 | 3.3 | 3.3 | 3.8 | |
| Size | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 | M56 | M60 | M64 | M68 | |
| d | max | 23.3 | 25.3 | 28.5 | 31.5 | 34.6 | 37.6 | 40.8 | 43.8 | 46.8 | 50 | 54.1 | 58.1 | 62.3 | 66.3 | 70.5 |
| min | 22.4 | 24.4 | 27.5 | 30.5 | 33.5 | 36.5 | 39.6 | 42.6 | 45.6 | 48.8 | 52.8 | 56.8 | 60.9 | 64.9 | 69 | |
| n | max | 6.2 | 7.25 | 7.25 | 8.25 | 10.25 | 10.25 | 10.25 | 12.25 | 12.25 | 12.25 | 14.25 | 14.25 | 14.25 | 14.25 | 14.25 |
| min | 5.8 | 6.75 | 6.75 | 7.75 | 9.75 | 9.75 | 9.75 | 11.75 | 11.75 | 11.75 | 13.75 | 13.75 | 13.75 | 13.75 | 13.75 | |
| h | Nominal Size | 4 | 5 | 5 | 6 | 6 | 6 | 6 | 7 | 7 | 7 | 8 | 8 | 8 | 8 | 8 |
| max | 4.2 | 5.2 | 5.2 | 6.25 | 6.25 | 6.25 | 6.25 | 7.25 | 7.25 | 7.25 | 8.25 | 8.25 | 8.25 | 8.25 | 8.25 | |
| min | 3.8 | 4.8 | 4.8 | 5.75 | 5.75 | 5.75 | 5.75 | 6.75 | 6.75 | 6.75 | 7.75 | 7.75 | 7.75 | 7.75 | 7.75 | |
