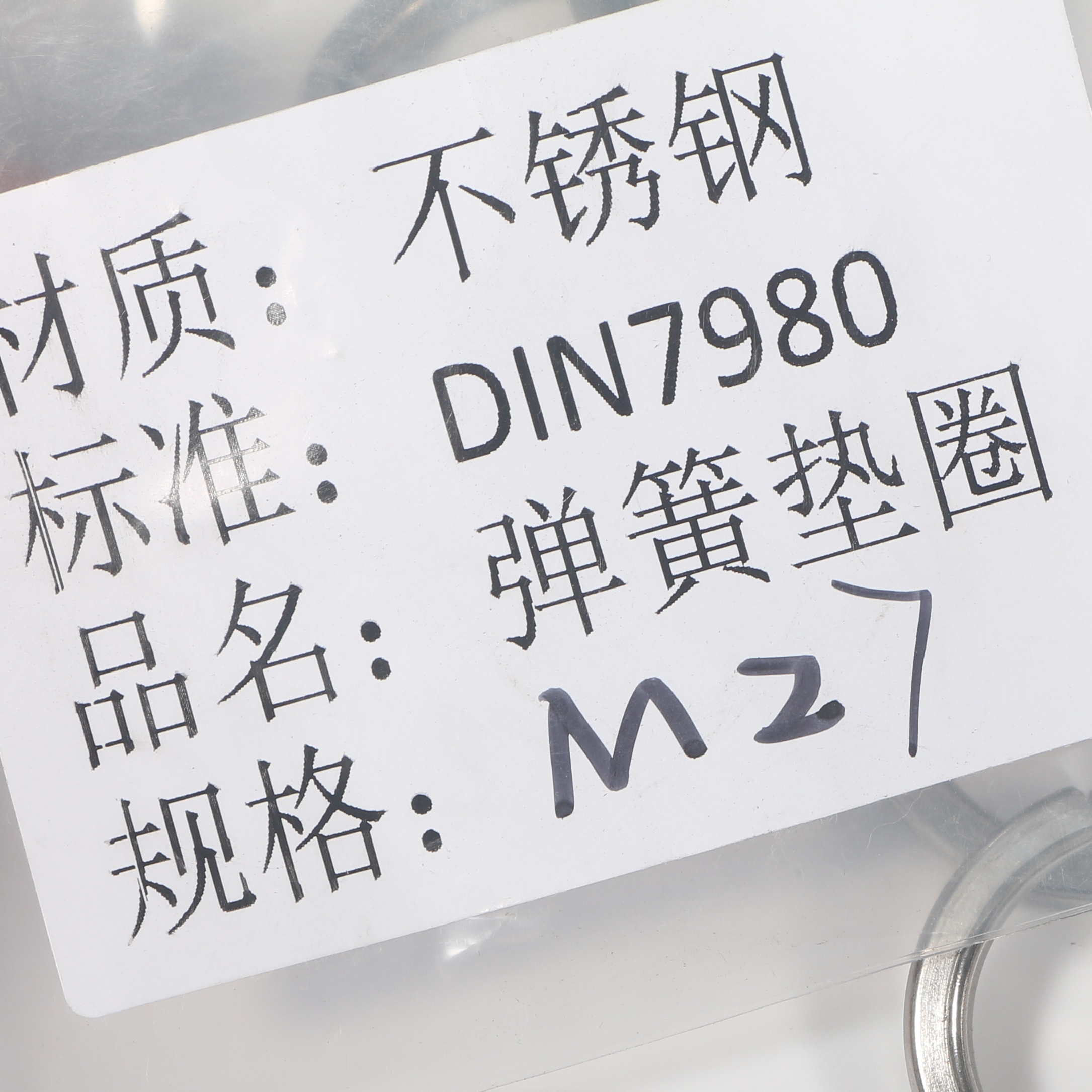

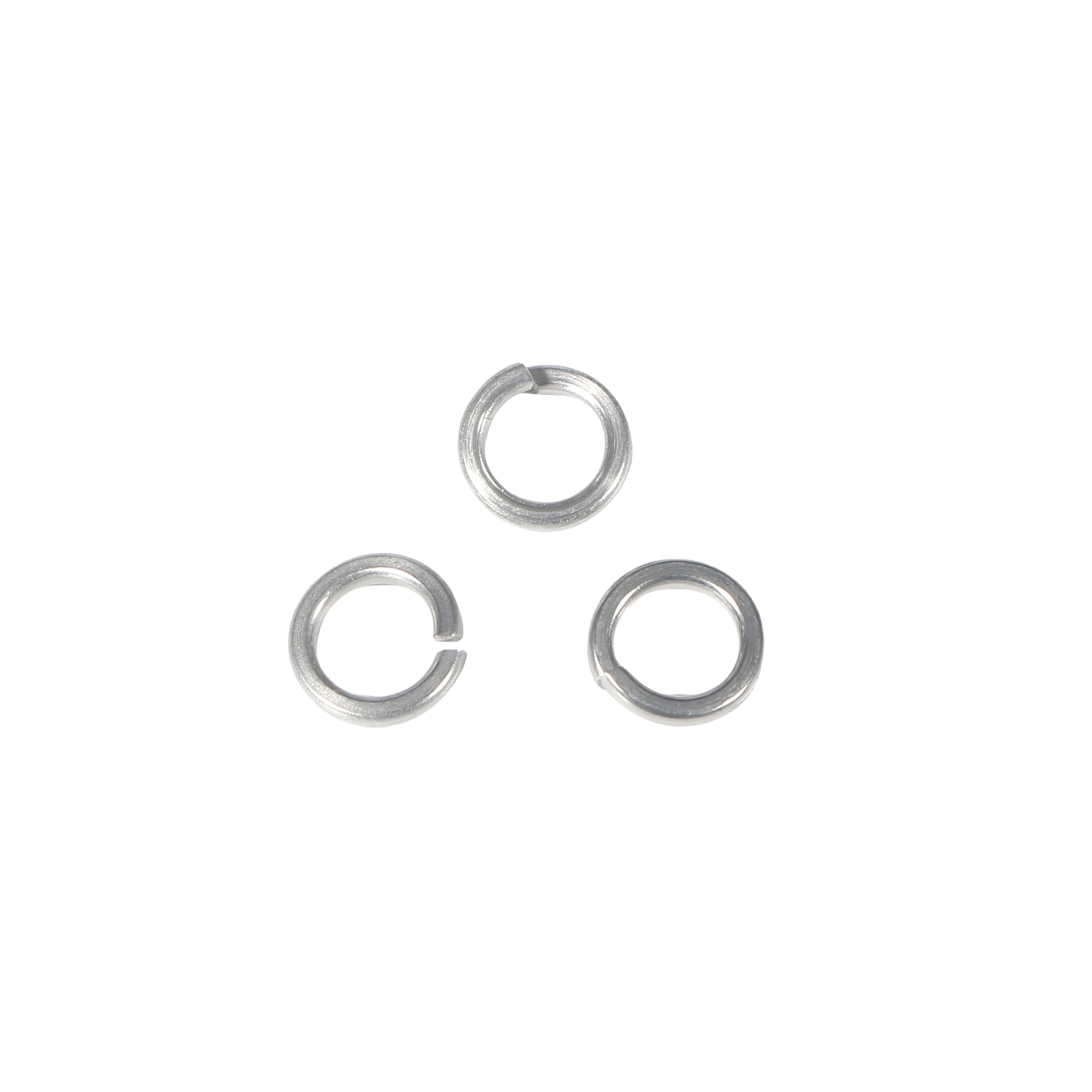

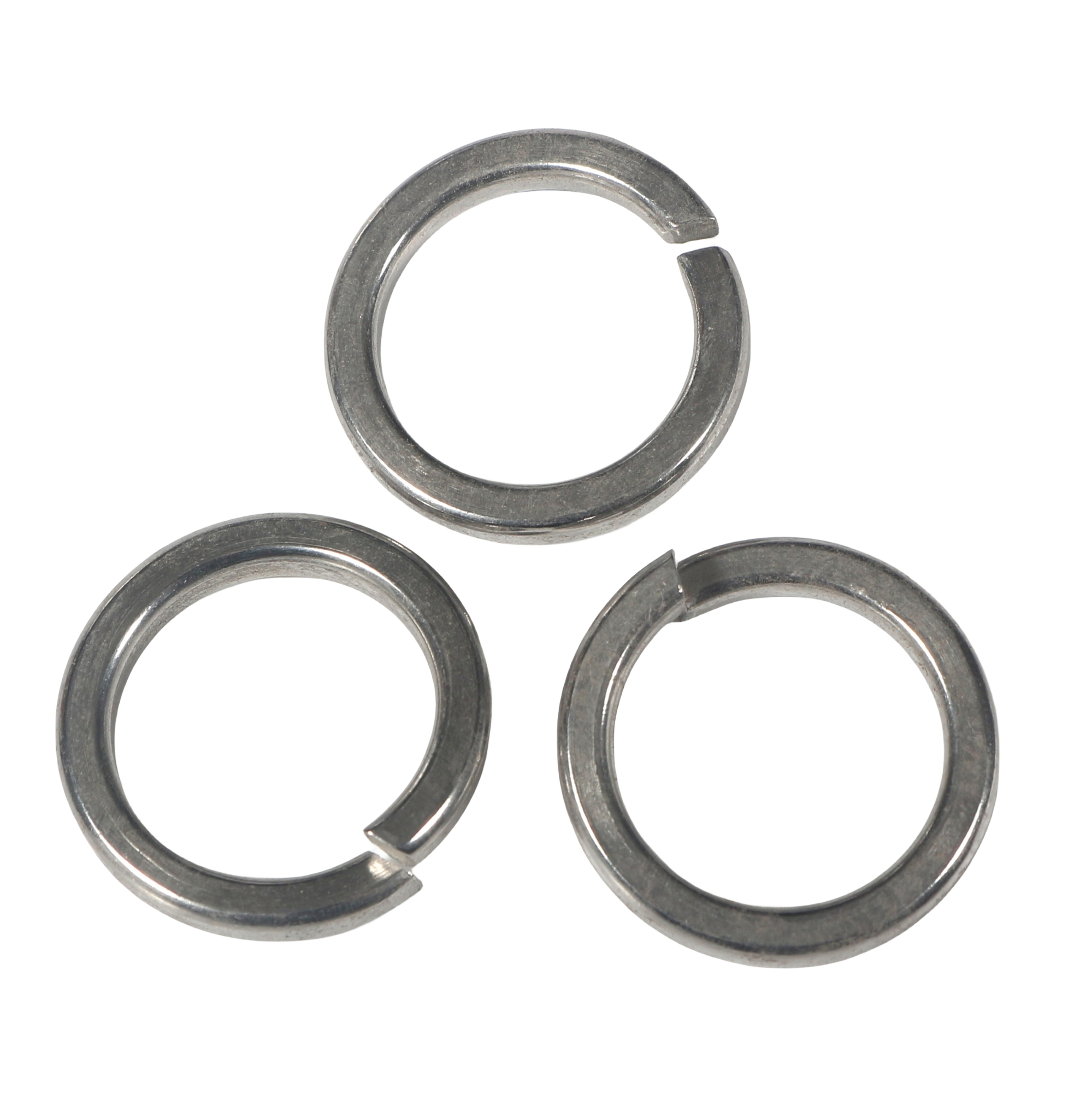

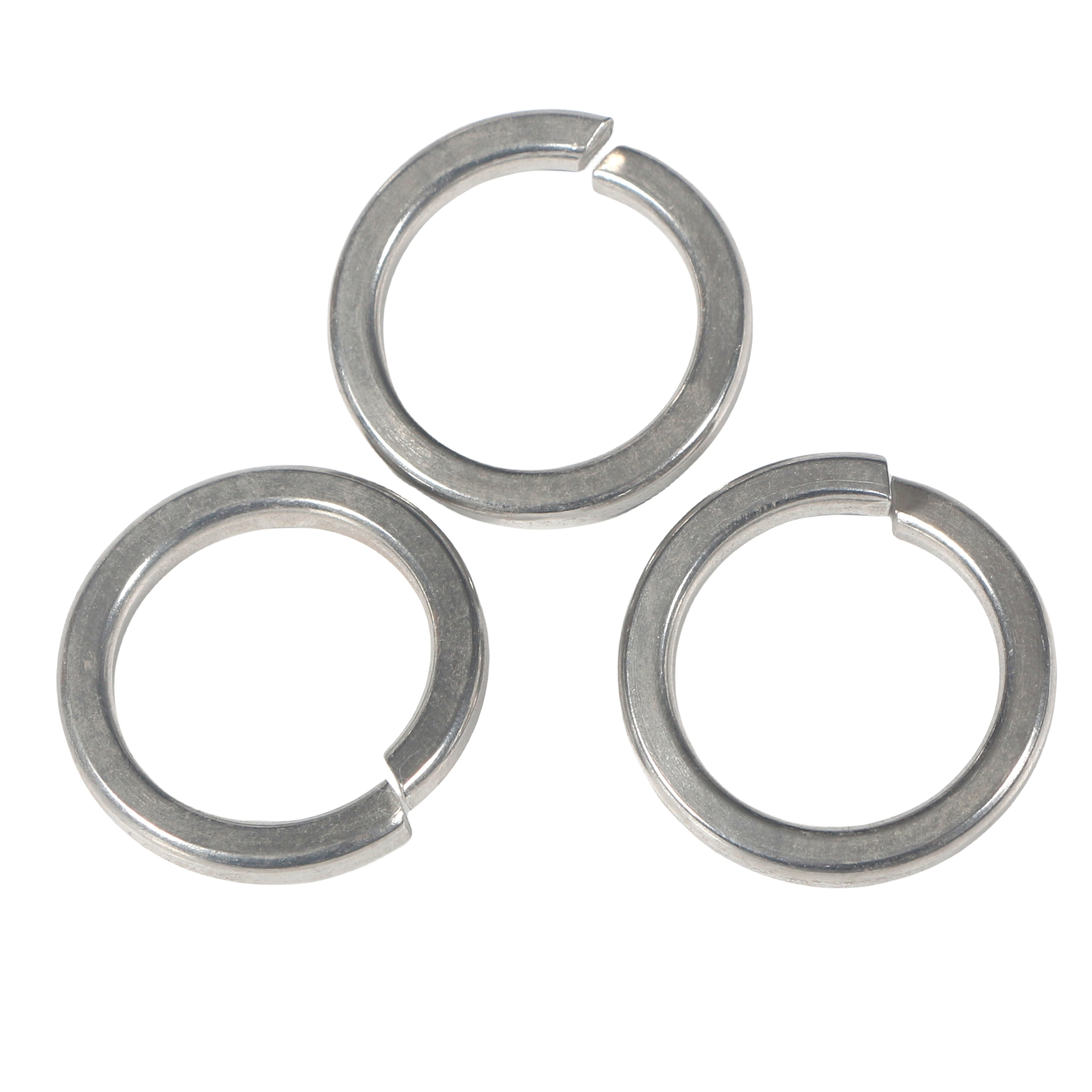

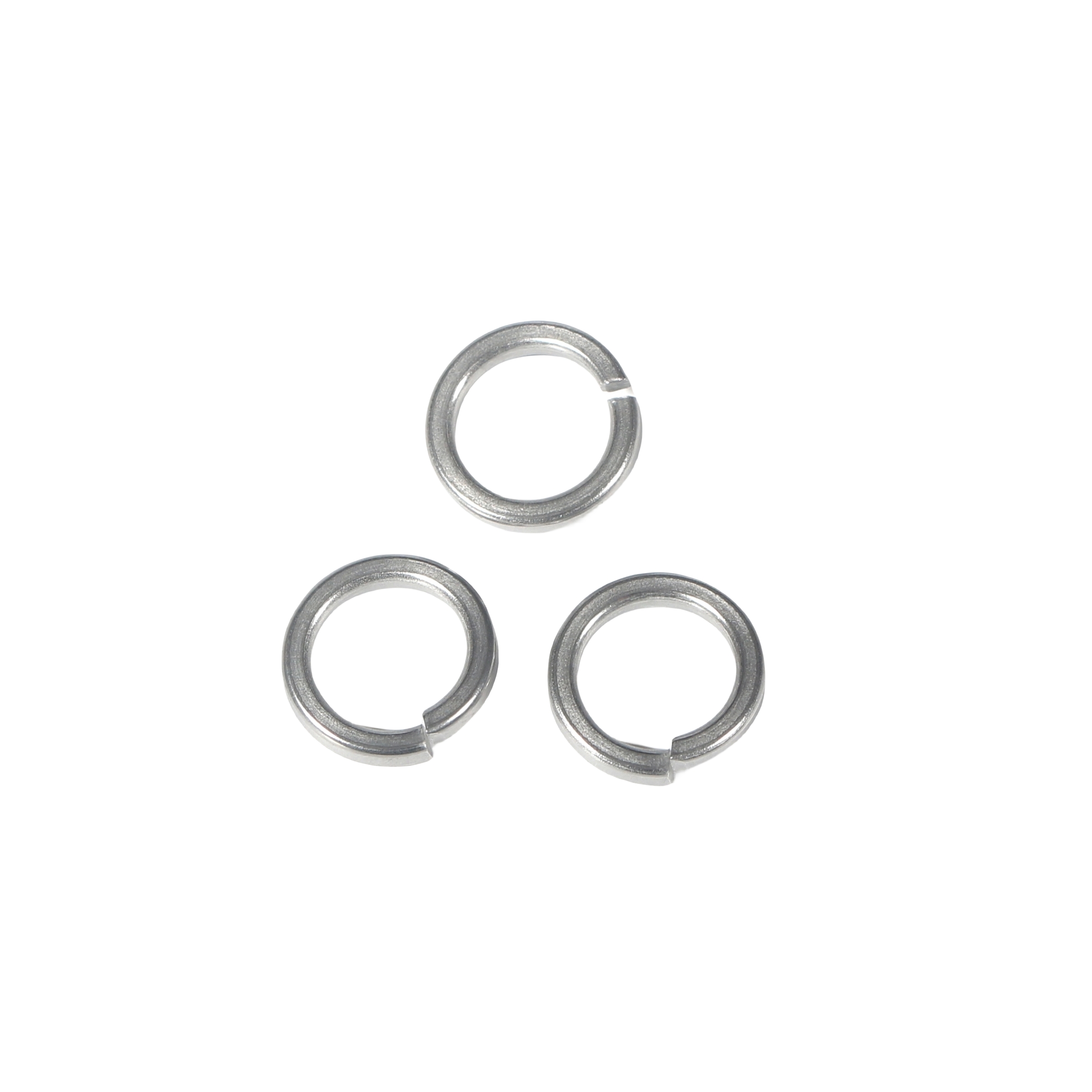

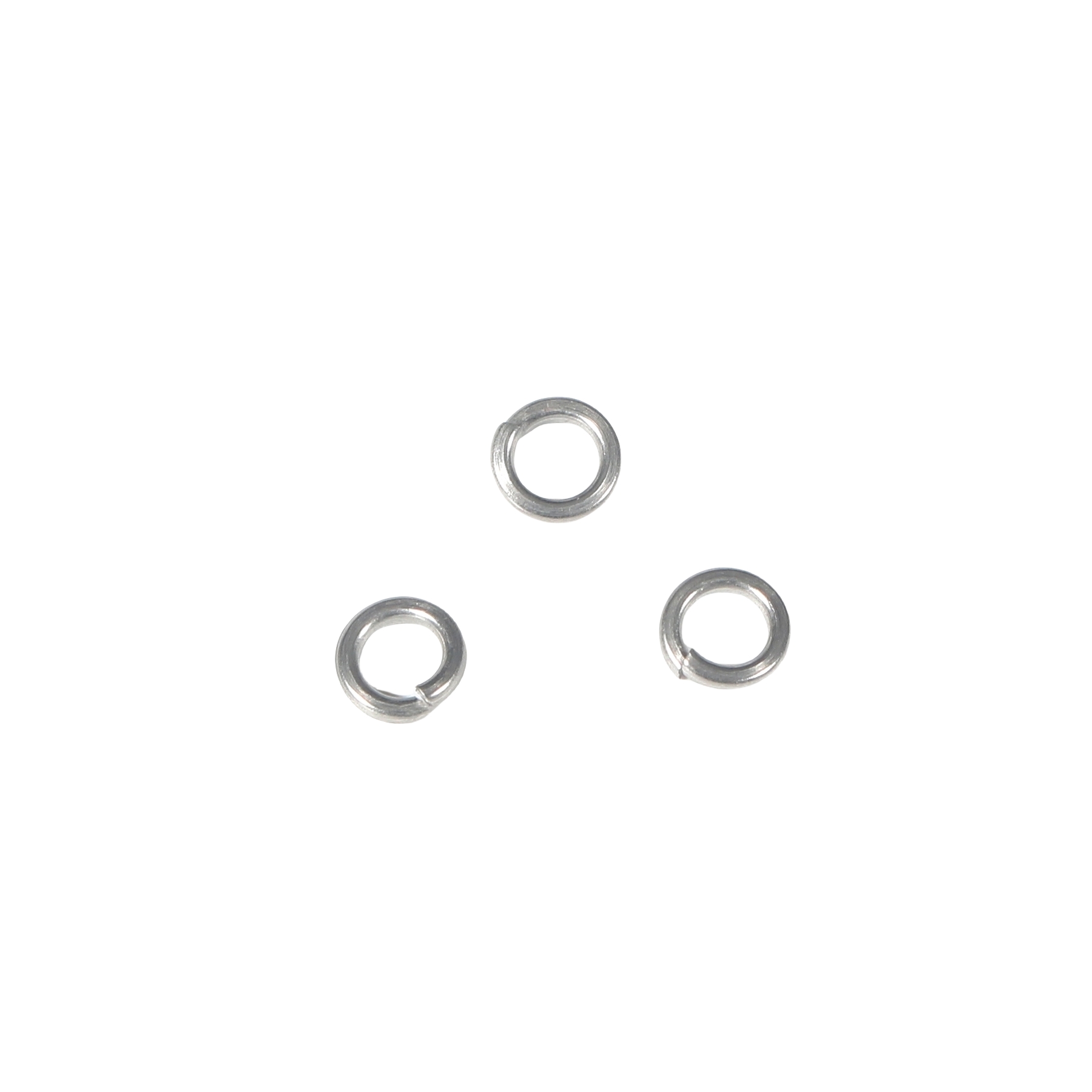

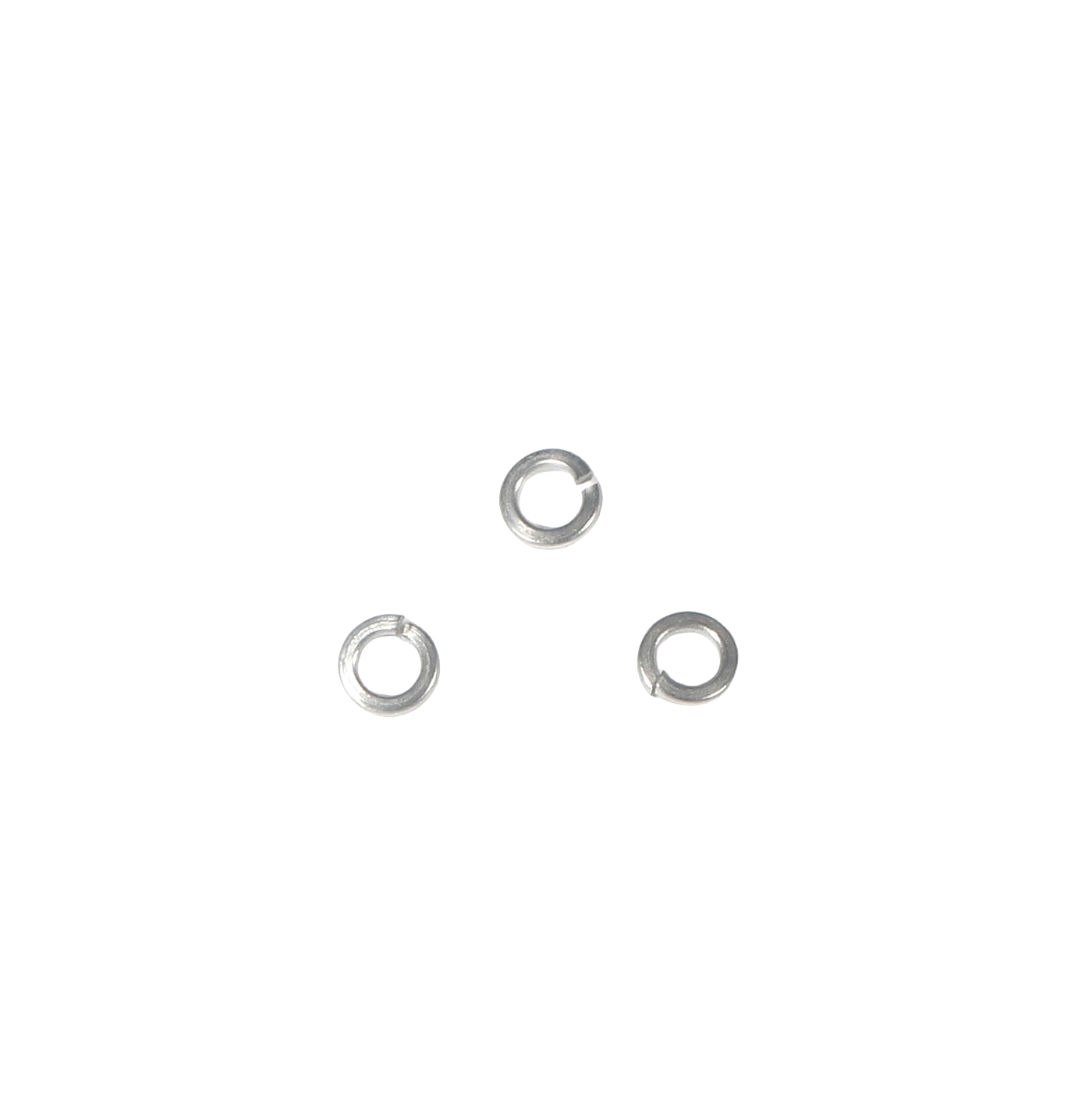

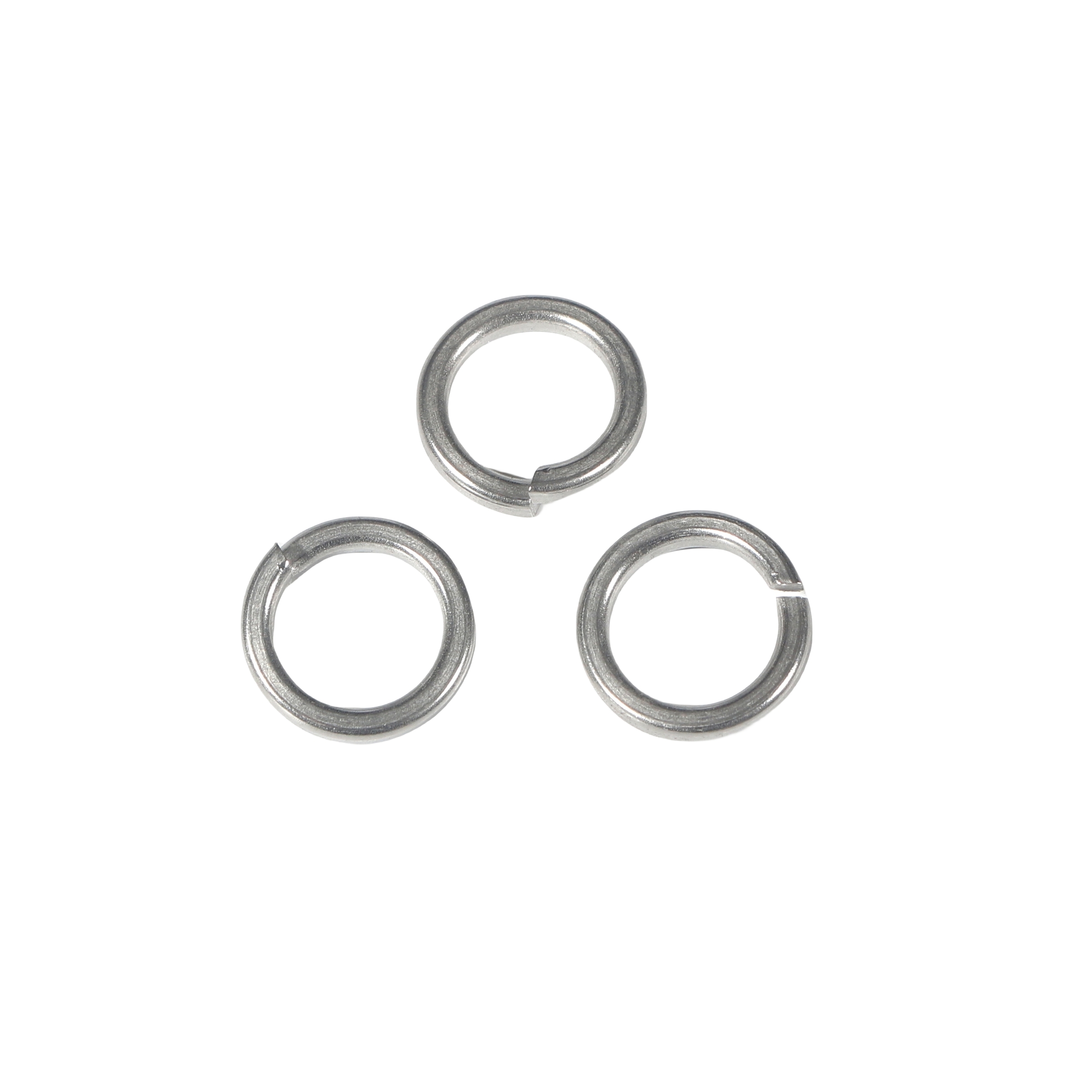

DIN 7980 Spring Lock Washers

Product brief description:

Durable and sturdy

No rust when exposed to water

Standard size

Environmentally friendly and aesthetically pleasing

Complete variety

Wide adaptability

Quality assurance

Material diversity (stainless steel, spring steel, copper, aluminum, alloy steel, etc)

Product specifics:

DIN 7980 spring washers series is widely used in mechanical railway industrial products, auto parts, power products, solar products, ships, building decoration engineering, bridges, furniture, home appliances, and other fields.

Product parameter table:

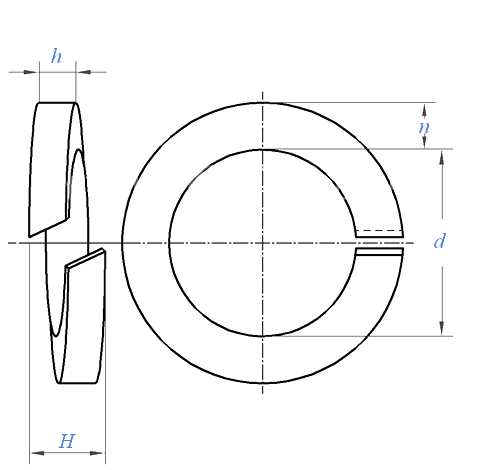

DIN 7980 Spring Lock Washers details

Nominal Diameter		Φ3	Φ3.5	Φ4	Φ5	Φ6	Φ8	Φ10	Φ12	Φ14	Φ16
d	min	3.1	3.6	4.1	5.1	6.1	8.1	10.2	12.2	14.2	16.2
d	max	3.4	3.9	4.4	5.4	6.5	8.5	10.7	12.7	14.7	17
h	Nominal Size	1	1	1.2	1.6	1.6	2	2.5	2.5	3	3.5
	max	1.1	1.1	1.3	1.7	1.7	2.1	2.65	2.65	3.2	3.7
	min	0.9	0.9	1.1	1.5	1.5	1.9	2.35	2.35	2.8	3.3
n	Nominal Size	1	1	1.2	1.6	1.6	2	2.5	2.5	3	3.5
	max	1.1	1.1	1.3	1.7	1.7	2.1	2.65	2.65	3.2	3.7
	min	0.9	0.9	1.1	1.5	1.5	1.9	2.35	2.35	2.8	3.3
H	min	2	2	2.4	3.2	3.2	4	5	5	6	7
H	max	2.36	2.36	2.83	3.78	3.78	4.72	5.9	5.9	7.1	8.25
For Nominal Thread Diameter		M3	M3.5	M4	M5	M6	M8	M10	M12	M14	M16
per 1000 units ≈ kg		0.105	0.114	0.195	0.37	0.425	1.06	1.96	2.28	3.8	5.94

Nominal Diameter		Φ18	Φ20	Φ22	Φ24	Φ27	Φ30	Φ33	Φ36	Φ42	Φ48
d	min	18.2	20.2	22.5	24.5	27.5	30.5	33.5	36.5	42.5	49
d	max	19	21.2	23.5	25.5	28.5	31.7	34.7	37.7	43.7	50.5
h	Nominal Size	3.5	4.5	4.5	5	5	6	6	7	8	8
	max	3.7	4.7	4.7	5.2	5.2	6.2	6.2	7.25	8.25	8.25
	min	3.3	4.3	4.3	4.8	4.8	5.8	5.8	6.75	7.75	7.75
n	Nominal Size	3.5	4.5	4.5	5	5	6	6	7	8	8
	max	3.7	4.7	4.7	5.2	5.2	6.2	6.2	7.25	8.25	8.25
	min	3.3	4.3	4.3	4.8	4.8	5.8	5.8	6.75	7.75	7.75
H	min	7	9	9	10	10	12	12	14	16	16
H	max	8.25	10.6	10.6	11.8	11.8	14.2	14.2	16.5	18.9	18.9
For Nominal Thread Diameter		M18	M20	M22	M24	M27	M30	M33	M36	M42	M48
per 1000 units ≈ kg		6.6	12.3	13.6	18.1	20.6	32	35	52.5	80	90
