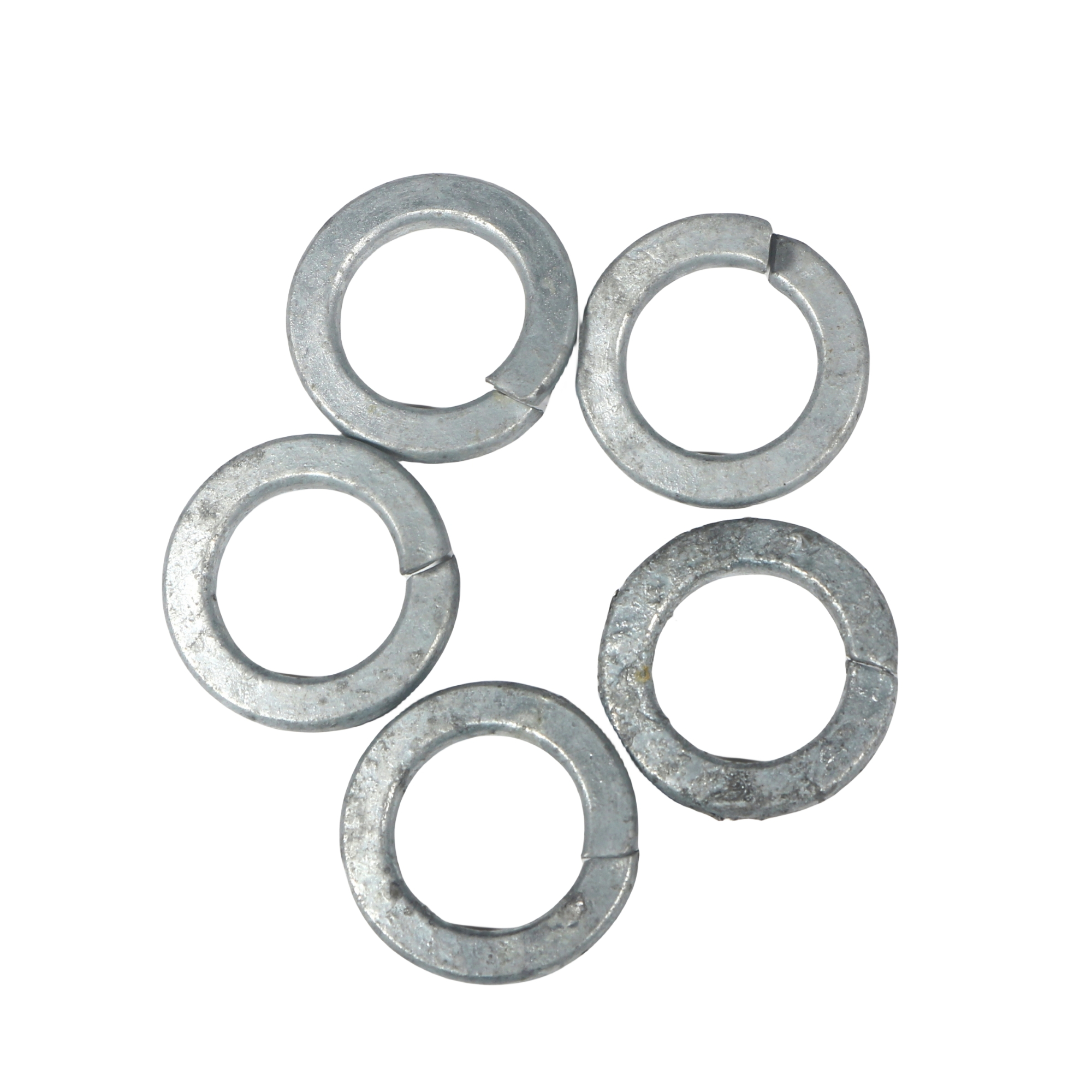

DIN 127 B Carbon Steel Galvanized Spring Lock Washers M24 Hot dip galvanizing

Product brief description:

Durable and sturdy

No rust when exposed to water

Standard size

Environmentally friendly and aesthetically pleasing

Complete variety

Wide adaptability

Quality assurance

Material diversity (stainless steel, spring steel, copper, aluminum, alloy steel, etc)

Product specifics:

DIN 127 B carbon steel galvanized spring lock washers M42 M36 M24 M16 M8

is widely used in mechanical railway industrial products, auto parts, power products, solar products, ships, building decoration engineering, bridges, furniture, home appliances, and other fields.

Product parameter table:

Nominal Diameter		Φ2	Φ2.2	Φ2.5	Φ3	Φ3.5	Φ4	Φ5	Φ6	Φ7	Φ8	Φ10	Φ12
d	min	2.1	2.3	2.6	3.1	3.6	4.1	5.1	6.1	7.1	8.1	10.2	12.2
d	max	2.4	2.6	2.9	3.4	3.9	4.4	5.4	6.5	7.5	8.5	10.7	12.7
n	Nominal Size	0.9	1	1	1.3	1.3	1.5	1.8	2.5	2.5	3	3.5	4
	max	1	1.1	1.1	1.4	1.4	1.6	1.9	2.65	2.65	3.15	3.7	4.2
	min	0.8	0.9	0.9	1.2	1.2	1.4	1.7	2.35	2.35	2.85	3.3	3.8
h	Nominal Size	0.5	0.6	0.6	0.8	0.8	0.9	1.2	1.6	1.6	2	2.2	2.5
	max	0.6	0.7	0.7	0.9	0.9	1	1.3	1.7	1.7	2.1	2.35	2.65
	min	0.4	0.5	0.5	0.7	0.7	0.8	1.1	1.5	1.5	1.9	2.05	2.35
H	min	1	1.2	1.2	1.6	1.6	1.8	2.4	3.2	3.2	4	4.4	5
H	max	1.2	1.4	1.4	1.9	1.9	2.1	2.8	3.8	3.8	4.7	5.2	5.9
per 1000 units ≈ kg		0.033	0.05	0.053	0.11	0.12	0.18	0.36	0.83	0.93	1.6	2.53	3.82

Nominal Diameter		Φ14	Φ16	Φ18	Φ20	Φ22	Φ24	Φ27	Φ30	Φ36	Φ39	Φ42	Φ45
d	min	14.2	16.2	18.2	20.2	22.5	24.5	27.5	30.5	36.5	39.5	42.5	45.5
d	max	14.7	17	19	21.2	23.5	25.5	28.5	31.7	37.7	40.7	43.7	46.7
n	Nominal Size	4.5	5	5	6	6	7	7	8	10	10	12	12
	max	4.7	5.2	5.2	6.2	6.2	7.25	7.25	8.25	10.25	10.25	12.25	12.25
	min	4.3	4.8	4.8	5.8	5.8	6.75	6.75	7.75	9.75	9.75	11.75	11.75
h	Nominal Size	3	3.5	3.5	4	4	5	5	6	6	6	7	7
	max	3.15	3.7	3.7	4.2	4.2	5.2	5.2	6.2	6.2	6.2	7.25	7.25
	min	2.85	3.3	3.3	3.8	3.8	4.8	4.8	5.8	5.8	5.8	6.75	6.75
H	min	6	7	7	8	8	10	10	12	12	12	14	14
H	max	7.1	8.3	8.3	9.4	9.4	11.8	11.8	14.2	14.2	14.2	16.5	16.5
per 1000 units ≈ kg		6.01	8.91	9.73	15.2	16.5	26.2	28.7	44.3	67.3	71.7	111	117

Nominal Diameter		Φ48	Φ52	Φ56	Φ60	Φ64	Φ68	Φ72	Φ80	Φ90	Φ100
d	min	49	53	57	61	65	69	73	81	91	101
d	max	50.5	54.5	58.5	62.5	66.5	70.5	74.5	82.5	92.5	102.5
n	Nominal Size	12	14	14	14	14	14	14	14	14	14
	max	12.25	14.25	14.25	14.25	14.25	14.25	14.25	14.25	14.25	14.25
	min	11.75	13.75	13.75	13.75	13.75	13.75	13.75	13.75	13.75	13.75
h	Nominal Size	7	8	8	8	8	8	8	8	8	8
	max	7.25	8.25	8.25	8.25	8.25	8.25	8.25	8.25	8.25	8.25
	min	6.75	7.75	7.75	7.75	7.75	7.75	7.75	7.75	7.75	7.75
H	min	14	16	16	16	16	16	16	16	16	16
H	max	16.5	18.9	18.9	18.9	18.9	18.9	18.9	18.9	18.9	18.9
per 1000 units ≈ kg		123	182	193	203	218	228	240	262	290	318
